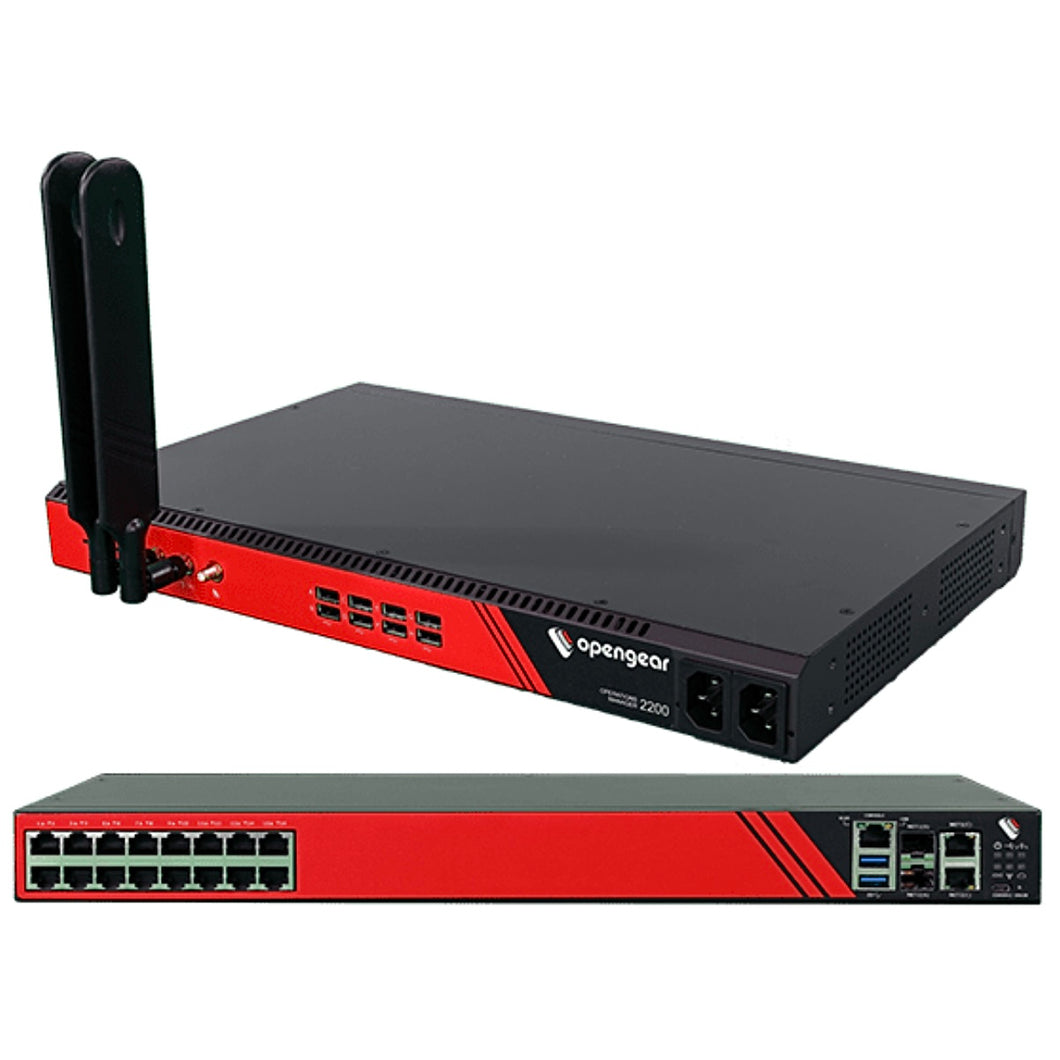

us open gear OM2216-L-USConsole Server + Automation, 16 Serial, 8G RAM, 64G Flash, 1GbE, US power cord, Global LTE, Python Runtime, Docker Support, Secure Boot OM2200 OPERATIONS MANAGER Opengear OM appliances are NetOps Console Servers Network Management appliances that combine the capabilities of a Smart OOB Console Server with the flexibility of NetOps Automation. The OM2200 NetOps Console Server, managed through our Lighthouse software, is configured for data centers and

Console Server + Automation, 16 Serial, 8G RAM, 64G Flash, 1GbE, US power cord, Global LTE, Python Runtime, Docker Support, Secure Boot

OM2200 OPERATIONS MANAGER

Opengear OM appliances are NetOps Console Servers – Network Management appliances that combine the capabilities of a Smart OOB™ Console Server with the flexibility of NetOps Automation.

The OM2200 NetOps Console Server, managed through our Lighthouse software, is configured for data centers and high-density locations. As part of Opengear’s Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.

• 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
• x86 platform supporting Docker and Python, to automate NetOps processes
• Smart OOB includes automated port discovery and VLAN support on the OM appliances

FEATURES

TECH SPECS

All Models:

• All serial ports are RJ45 RS-232 Console Port (50 to 230,400 bps, software selectable Cisco-straight or Cisco-rolled pinout)

• 1 x micro USB 2.0 Console Port and 1 x RJ45 Serial

• 8 x USB 2.0 ports for device console management

• 2 x USB 3.0 Host Ports for storage

• 2 x 10/100/1000 Ethernet/SFP Fiber port

• OM2216 ‚Äì 16 x RJ45 RS-232 Serial Ports

• OM2232 ‚Äì 32 x RJ45 RS-232 Serial Ports

• OM2248 ‚Äì 48 x RJ45 RS-232 Serial Ports


Power:

• Dual socket universal 100-240V AC

• Power consumption for serial models than 30W

• Power consumption for mixed models less than 45W


Dimensions and Weight:

• 17.25 x 10.25 x 1.75 in ‚Äì 7.7 lbs

• 44 x 26 x 4.5 cm ‚Äì 3.5 kg


Environmental:

• Ambient Operating Temperature: 5¬∞C to 50¬∞C, 41¬∞F to 122¬∞F

• Storage Temperature: -30¬∞C to +60¬∞C, -22¬∞F to +140¬∞F

• Humidity: 5% to 90%


Emissions:

• EN55032: 2015 Class A


Immunity:

• EN61000-4-2, -4-3:2006+A1: 2006+A2:2010, -4-4: 2007, -4-5: 2014, -4-6:2008, -4-8: 2009, -4-11: 2010, -4-28: 2010 EN61000-3-2: 2014, EN61000-3-3: 2013


Memory & CPU:

• AMD GX-412TC¬† 1.4 GHz 4-core 64-bit x86
• 8 GB DDR3 RAM

MTBF:

• 100,000 hours


Security and Authentication:

• Trusted Platform Module 2.0

• AAA ‚Äì TACACS+

• SSH

• Embedded Firewall

• OpenVPN ‚Äì Lighthouse Connection


Cellular Specifications (OM22xx-L models)

SIM Slot: Dual Push Click 2FF SIM slots

Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module certified CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE-A Pro (LTE-LAA), HSPA+

Frequency Bands:4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19

Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12
