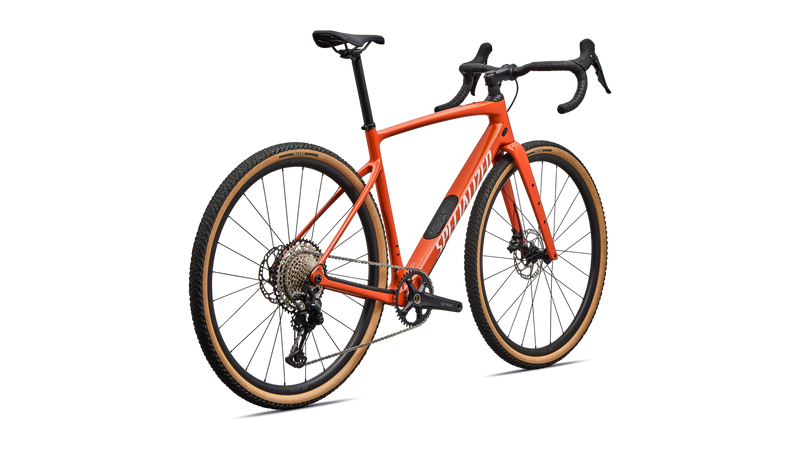

The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
At a Glance
Use
Gravel Adventure/Race
Frameset
FACT 9r Carbon
Suspension
Future Shock 3.1
Drivetrain/Wheels
Shimano GRX 600 1x12 / DT G540
Storage
SWAT 4.0
Weight
Diverge Sport: 9.79kg
Technical Specifications
- Frame
- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Fork
- Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
- Front Brake
- Shimano GRX BR-RX410 Hydraulic Disc
- Rear Brake
- Shimano GRX BR-RX410 Hydraulic Disc
- Bottom Bracket
- Shimano BSA Threaded 68mm
- Crankset
- Shimano GRX FC-RX610, 40t
- Rear Derailleur
- Shimano GRX RX822-SGS, 12-speed
- Cassette
- Shimano SLX, CS-M7100, 12-speed, 10-51t
- Chain
- Shimano SLX, M7100, 12-speed
- Shift Levers
- Shimano GRX ST-RX610 12-speed
- Front Wheel
- DT Swiss G540 700c, Center Lock Disc
- Rear Wheel
- DT Swiss G540 700c, Center Lock Disc
- Inner Tubes
- Presta, 700x32-50mm
- Front Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Rear Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Saddle
- Body Geometry Power Sport, steel rails
- SeatPost
- Carbon, single-bolt, 27.2mm
- Stem
- Future Stem, Comp
- Handlebars
- Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Seat Binder
- Specialized Alloy, 30.8mm
- Tape
- Supacaz Super Sticky Kush
- SWAT
- SWAT 4.0 internal downtube storage
- Product ID
- 223514
- Weight Size
- 56
- Weight
- 9.79 kg (21 lb, 9.3 oz)
Diverge 3 Alloy
- Frame
- Specialized Diverge E5 Premium Aluminum, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
- Fork
- FACT carbon, full carbon steerer, 12x100 mm thru-axle, flat-mount disc
- Front Brake
- Shimano CUES BR-U6030 Hydraulic disc
- Rear Brake
- Shimano CUES BR-U6030 Hydraulic disc
- Chain
- KMC XGlide
- Crankset
- Shimano CUES FC-U6030, 46/32T
- Front Derailleur
- Shimano CUES FD-U6030, braze-on
- Rear Derailleur
- Shimano CUES RD-U6020, 10-speed
- Shift Levers
- Shimano CUES ST-U6030
- Cassette
- Shimano CUES CS-LG300-10, 10 speed, 11-39t
- Bottom Bracket
- Shimano Threaded BSA BB
- Inner Tubes
- 700x28-38mm, 48mm Presta valve
- Front Wheel
- AXIS Sport Disc
- Rear Wheel
- AXIS Sport Disc
- Front Tire
- Pathfinder Wirebead Fast Gravel 700X40C
- Rear Tire
- Pathfinder Wirebead Fast Gravel 700X40C
- Stem
- 3D-forged alloy, 31.8mm, 7-degree rise
- SeatPost
- Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
- Seat Binder
- Alloy, 30.8mm
- Saddle
- Body Geometry Bridge Saddle, steel rails
- Handlebars
- Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
- Tape
- Supacaz Suave
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 400 | 400 | 400 | 400 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
